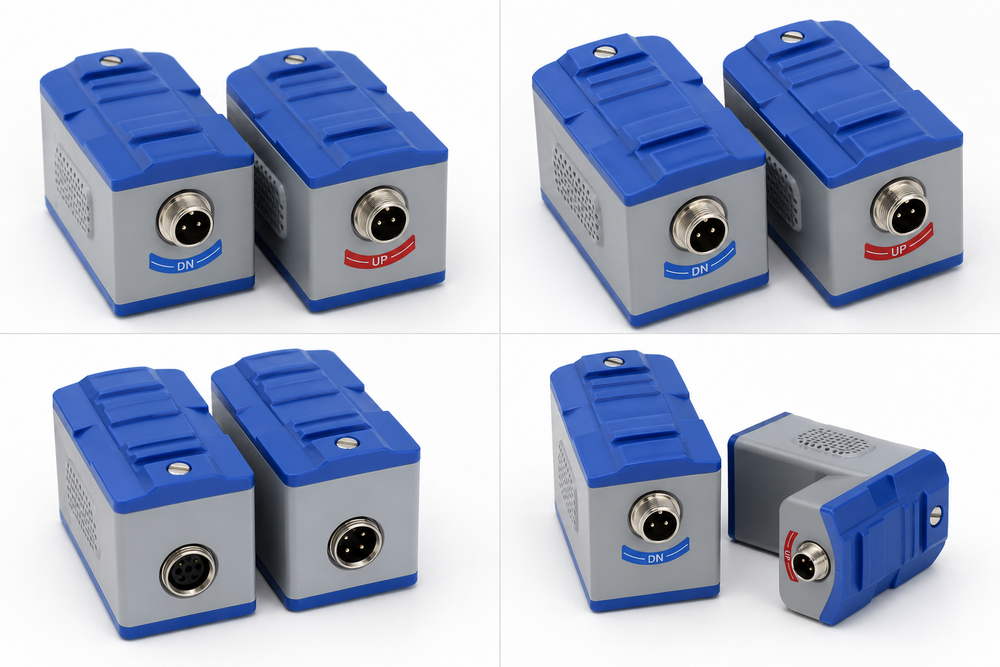

Ultrasonic Flow Meter (Non Contact Type)

Ultrasonic Flow Meter (Non Contact Type) Specification

Measuring Units
m3/h, L/min, GPM, L/h

Dimension (L*W*H)
120mm x 70mm x 60mm each sensor

Housing Material
ABS and engineering-grade polymer

Diameter
DN15 to DN6000

Operating Temperature
-20C to +60C

Application Media
Liquid flows (water, chemicals, etc.)

Protection
IP65

Measurement Range
Standard: 0-10000 m3/h

Storage Temperature
-40C to +70C

Process Connection
Clamp-on/no pipe cutting

Color
Blue & Grey

Model
Ultrasonic Flow Meter (Clamp On)

Velocity Range
0.01-5 m/s

Mounting
Clamp-on non-contact

Response Time
1 sec

Signal Type
Ultrasonic transit-time

Sensor Type
Piezoelectric ultrasonic sensors

Flow Rate
0.01 to 5 m/s

Output
4-20mA, Relay, RS485

Frequency
1-10 MHz

Connecting Type
Clamp & cable

Language
Multilingual support (English default)

Usage
Industrial

Material
Engineering plastic housing

Size
Standard

Power Supply
Manual

Power Consumption
<10W

Product Type
Ultrasonic Flow Meter

Accuracy
1% of reading

Display Type
Digital LCD

Range
0.1 to 10000 m3/h

Pipe Material Compatibility
Steel, PVC, Copper, Cast Iron, etc.

Non-intrusive
No process interruption or pipe cutting

Power Supply Variants
AC 90-240V or DC 12-36V

Equipment Type
Non-contact ultrasonic transit-time flow meter

Real-Time Output
Yes, instant display update

Cable Length
Standard 5 m (extendable on request)

Data Logging
Yes, with memory for up to 1000 readings

Enclosure Standard
NEMA 4X

Self-Diagnostics
Built-in status display and diagnostics

Weight
Approx. 1 kg per module

Suitability
Works on all clean and moderate-dirty liquids

Ultrasonic Flow Meter (Non Contact Type) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Ultrasonic Flow Meter (Non Contact Type)

Experience matchless precision with our Hot-selling Ultrasonic Flow Meter (Non Contact Type), engineered for transcendent reliability in every industrial setting. This scarce model offers a non-intrusive approach-no need for pipe cutting or disrupted processes. Equipped with advanced piezoelectric sensors, real-time LCD display, expansive data logging for up to 1000 readings, and suitabilities for a wide spectrum of liquids (water, chemicals, and more), it delivers uncommon accuracy (within 1% of reading) and robust durability. Get it now before this cutting-edge, user-friendly solution is gone!

Versatile Plant Applications for Every Industry

The Ultrasonic Flow Meter (Non Contact Type) is indispensable for plant applications demanding both general and highly specific liquid flow measurements. Ideal for monitoring water, chemicals, and other liquid flows, it adapts seamlessly to diverse industrial environments-be it manufacturing units, water treatment systems, chemical processing, or HVAC plants. Its non-contact, clamp-on design ensures universal compatibility with a range of pipe materials, making it a proactive solution for continual and reliable system monitoring across various applications.

Sample Availability, Market Coverage & Certifications

We offer sample Ultrasonic Flow Meters for evaluation, ensuring minimal outlay for your procurement decision. Our supply network covers the main domestic market in India, facilitating smooth transportation to your locations. Each unit is delivered with standard certifications, guaranteeing compliance, quality, and operational safety. Trust our expertise as a distinguished supplier, service provider, and trader - rely on us for prompt delivery, technical support, and certified performance that meets industry standards.

FAQ's of Ultrasonic Flow Meter (Non Contact Type):

Q: How does the Ultrasonic Flow Meter (Non Contact Type) operate without process interruption?

A: The meter uses ultrasonic transit-time technology with clamp-on sensors, allowing measurements without direct contact with the liquid or the need to cut or modify the pipe, maintaining uninterrupted flow during installation and operation.

Q: What media and pipe materials is this flow meter compatible with?

A: It is suitable for clean and moderate-dirty liquid flows such as water and chemicals, and works on pipes made from steel, PVC, copper, cast iron, and other common materials.

Q: Where can the Ultrasonic Flow Meter (Non Contact Type) be effectively installed?

A: This flow meter can be installed anywhere in industrial plants, water treatment facilities, process lines, or chemical pipelines, thanks to its non-contact, clamp-on design which facilitates flexible and easy mounting.

Q: What are the primary benefits of using a non-contact ultrasonic flow meter in an industrial setting?

A: This device offers rapid, accurate, and maintenance-free flow measurement with minimal installation effort, reduced operational downtime, and high durability-ideal for industries prioritizing efficiency and cost-effectiveness.

Q: How does the data logging feature support process monitoring?

A: With built-in memory for up to 1000 readings and real-time digital LCD display, the meter enables comprehensive monitoring and analysis of flow trends, enhancing effective maintenance and operational planning.
