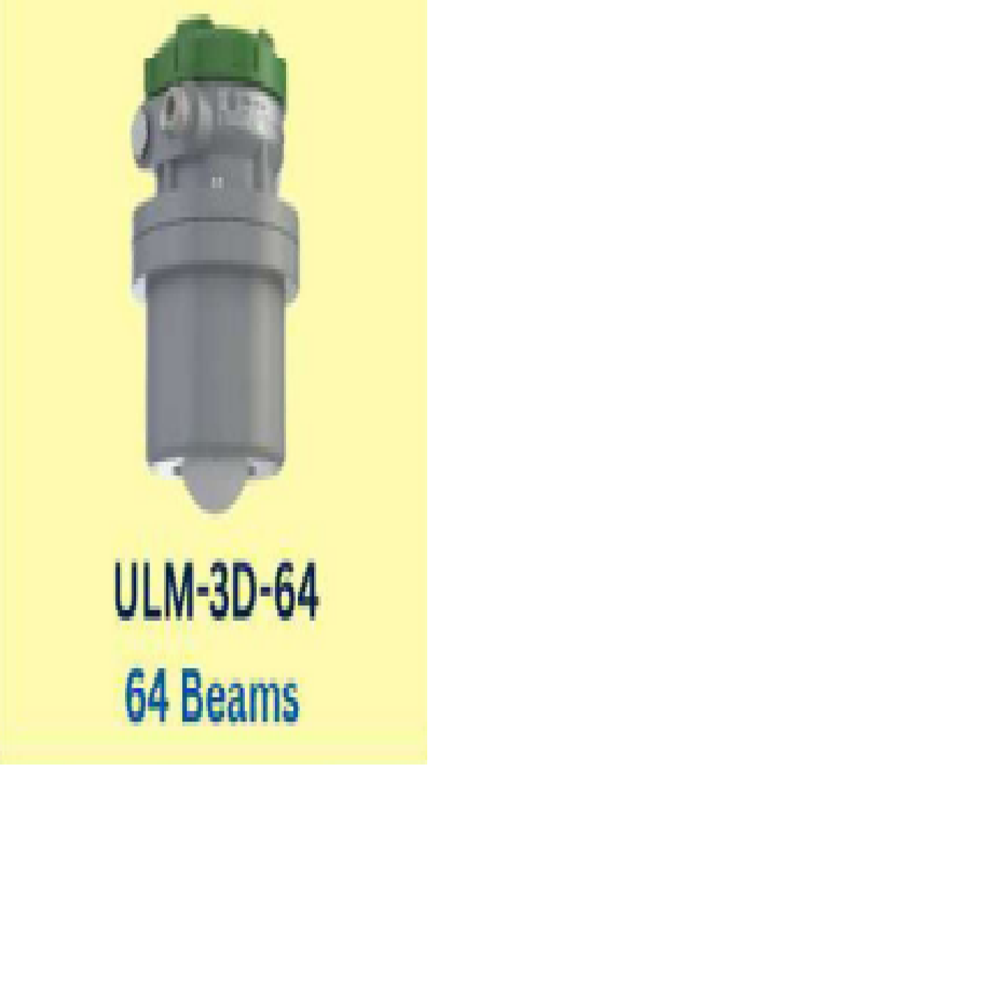

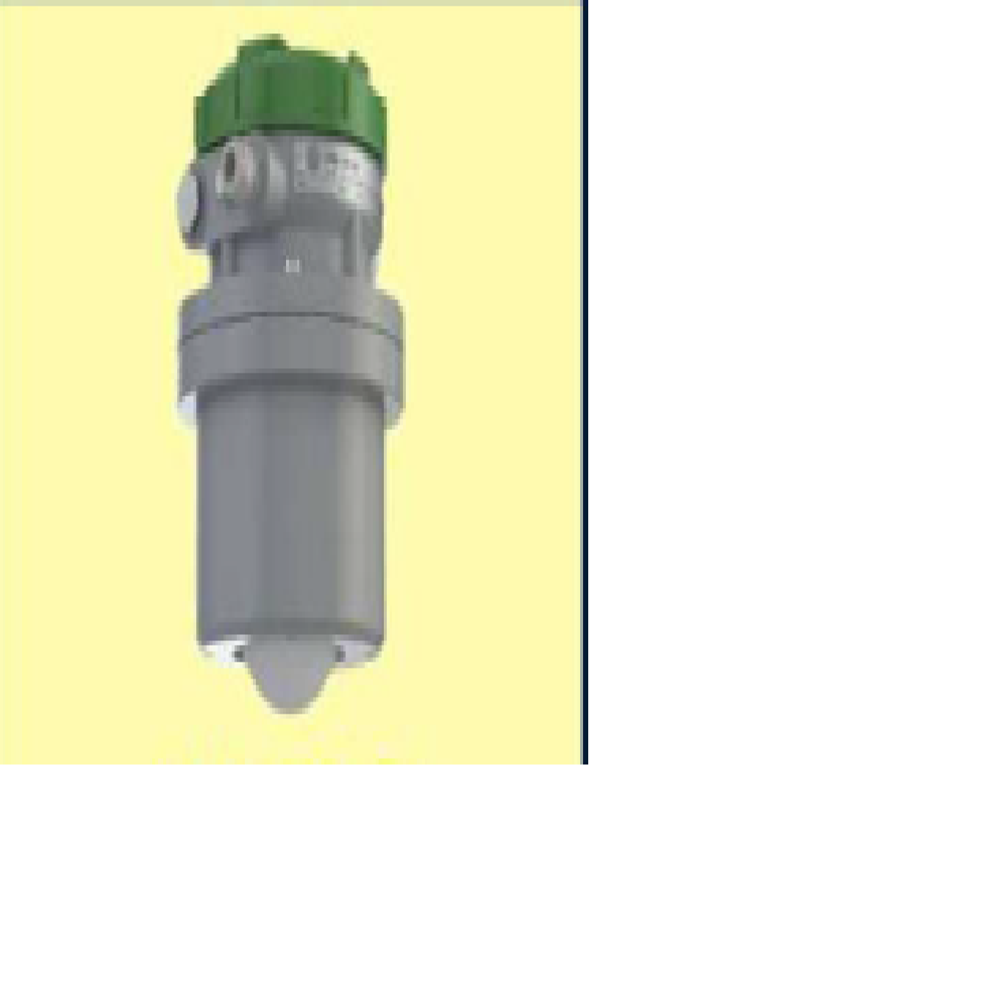

3D Radar Level Transmitter

3D Radar Level Transmitter Specification

Protection
IP 67 FLP optional

Application Media
Powder, Solid, Fuels, Cement etc.

Measurement Range
50m, 100m

Usage
Level & Volume Monitiring

Material
Al, PTFE

Power Supply
24 V DC

Accuracy
1 to 5 %

Range
50m, 100m

3D Radar Level Transmitter Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Month

Delivery Time
12 Months

Sample Policy
Contact us for information regarding our sample policy

About 3D Radar Level Transmitter

3D Radar Level Transmitters measure at multiple points (5 / 64) inside the silo / bunker or a stockpile. Multi point measurement ensures the problem of uneven surface profile found in every solid application is solved. It enables:

Accurate inventory

Detect rat holes, bridges

Predective stock safety

Applications:

-Coal bunker & fly ash silo

-Clinker and Cement silo

-Urea, DAP, NPK, Dust silos

-Bauxite silos

-PP, PVC, LLDPE silos

-Grain Silos

-And many more

Comprehensive Level Monitoring Capabilities

Our 3D Radar Level Transmitter ensures accurate and reliable measurement for various bulk materials, including cement, solid powders, and fuels. Designed for challenging industrial environments, it efficiently monitors both level and volume up to 100 meters, making it suitable for storage silos, tanks, and hoppers.

Advanced Protection and Durable Construction

Engineered using Aluminum and PTFE, the transmitter provides excellent resistance against corrosive substances and harsh operational conditions. With its IP67 protection rating and optional flameproof enclosure, it guarantees safe operation in demanding industrial settings.

FAQ's of 3D Radar Level Transmitter:

Q: How does the 3D Radar Level Transmitter monitor the level and volume of materials?

A: The transmitter uses 3D radar technology to emit high-frequency signals that reflect off the material surface. By measuring the time it takes for the signal to return, it accurately determines the material's level and calculates the volume inside the storage vessel.

Q: What are the typical applications for this radar level transmitter?

A: This device is widely used for monitoring levels in storage silos, hoppers, and tanks containing powders, solids, fuels, and cement, mainly in manufacturing, energy, and construction sectors.

Q: When should I choose the 3D Radar Level Transmitter over other level sensors?

A: You should opt for this transmitter when you need precise measurement (1-5% accuracy) in challenging environments and for materials such as powder or solid bulk goods, especially over long distances up to 100 meters.

Q: Where can the transmitter be installed safely?

A: It can be safely installed both indoors and outdoors, as its IP67 rating protects against dust and water ingress. The optional FLP (flameproof) enclosure is also available for hazardous areas.

Q: What is the installation process for the radar level transmitter?

A: Installation involves mounting the transmitter on the vessel (silo, tank, or hopper), connecting it to a 24 V DC power supply, and configuring its operating settings according to the material and measurement requirements.

Q: How does using this transmitter benefit industrial operations?

A: The transmitter enables continuous and accurate level and volume monitoring, reducing manual checks, enhancing inventory management, and minimizing risks of overfill or shortage, thereby improving operational efficiency.
